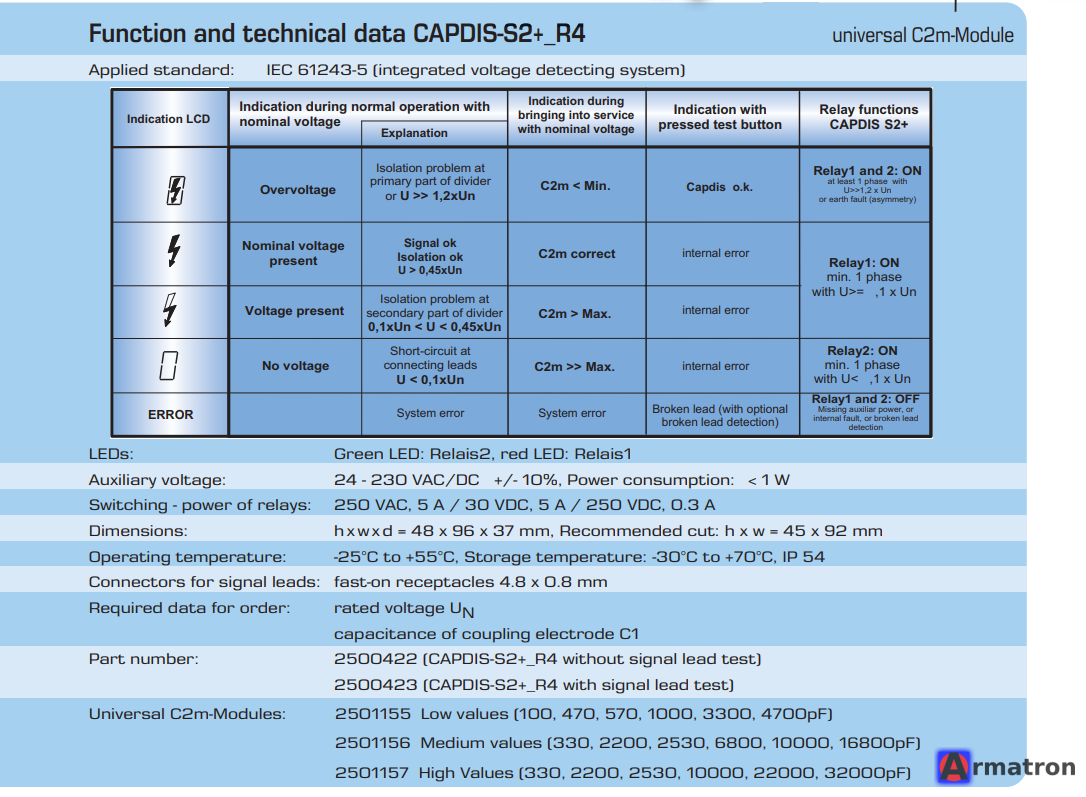

Applied standard: IEC 61243-5 (integrated voltage detecting system)
LEDs: Green LED: Relais2, red LED: Relais1
Auxiliary voltage: 24 - 230 VAC/DC +/- 10%, Power consumption: < 1 W
Switching - power of relays: 250 VAC, 5 A / 30 VDC, 5 A / 250 VDC, 0.3 A
Dimensions: h x w x d = 48 x 96 x 37 mm, Recommended cut: h x w = 45 x 92 mm
Operating temperature: -25°C to +55°C, Storage temperature: -30°C to +70°C, IP 54
Connectors for signal leads: fast-on receptacles 4.8 x 0.8 mm
Required data for order: rated voltage UN
capacitance of coupling electrode C1
Part number: 2500422 (CAPDIS-S2+_R4 without signal lead test)
2500423 (CAPDIS-S2+_R4 with signal lead test)
Universal C2m-Modules: 2501155 Low values (100, 470, 570, 1000, 3300, 4700pF)
2501156 Medium values (330, 2200, 2530, 6800, 10000, 16800pF)
2501157 High Values (330, 2200, 2530, 10000, 22000, 32000pF)
